UV Exposure lens

PRJ5um-405nm 3D printing lens 5um 0.365X Φ42mm

  • Product Display
  • PRODUCT FEATURES
  • Product Specifications
  • Product Display

    UV lens is a projection objective lens working in the ultraviolet waveband, project the dynamic images in the image generator onto the surface of the UV glue in sequence and without deformation. The glue is exposed and cured layer by layer to form the 3D shape.





    PRODUCT FEATURES

    ▶ Working wavelength 365/385/405nm


    ▶ Support image generators such as DLP/LCD


    ▶ Max resolution >50 MP


    ▶ Relative illuminance >95%


    ▶ Imaging + illumination full set of customized services can be provided




    Product Specifications

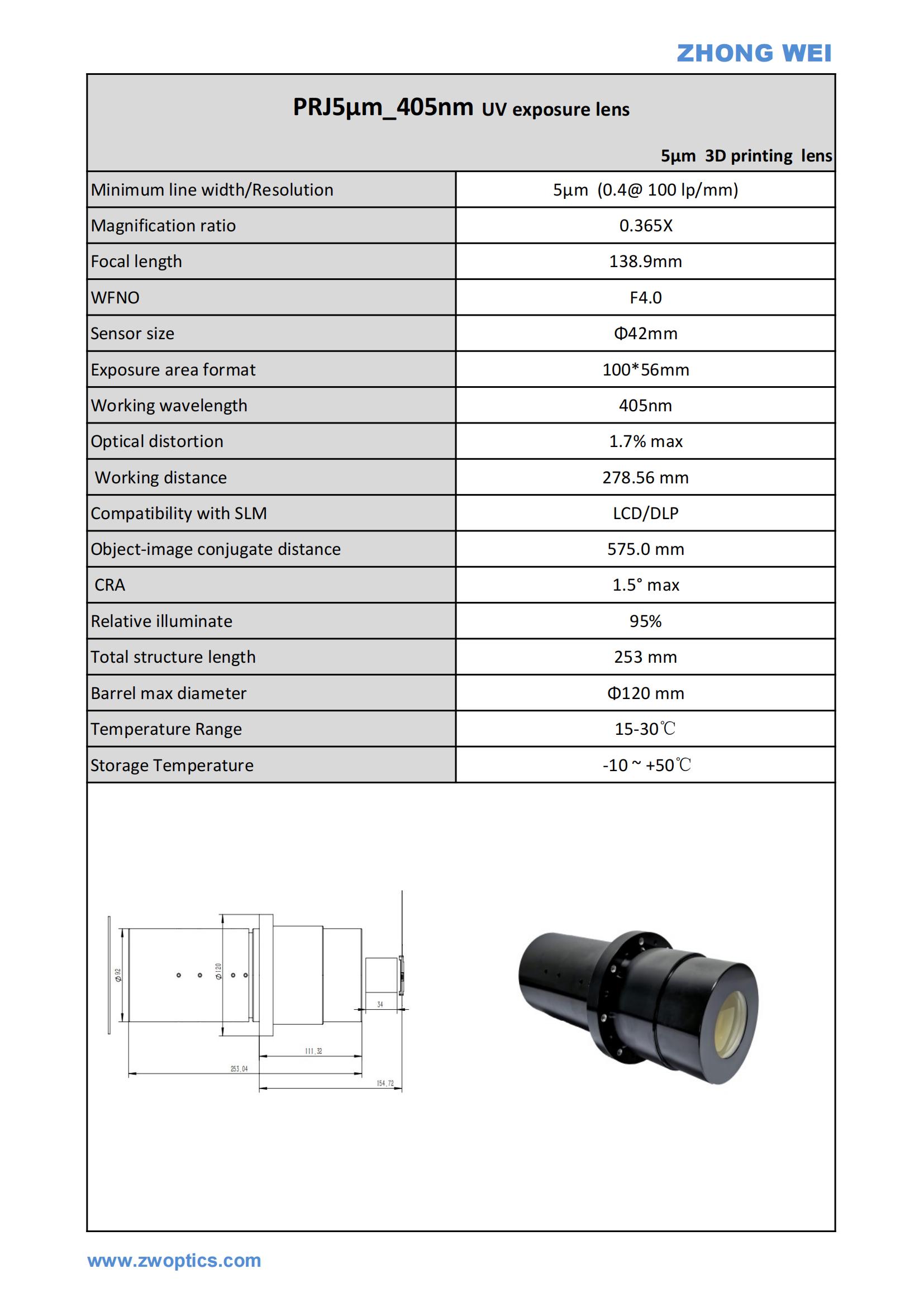

    PRJ-5um_405nm datasheet_00.jpg
