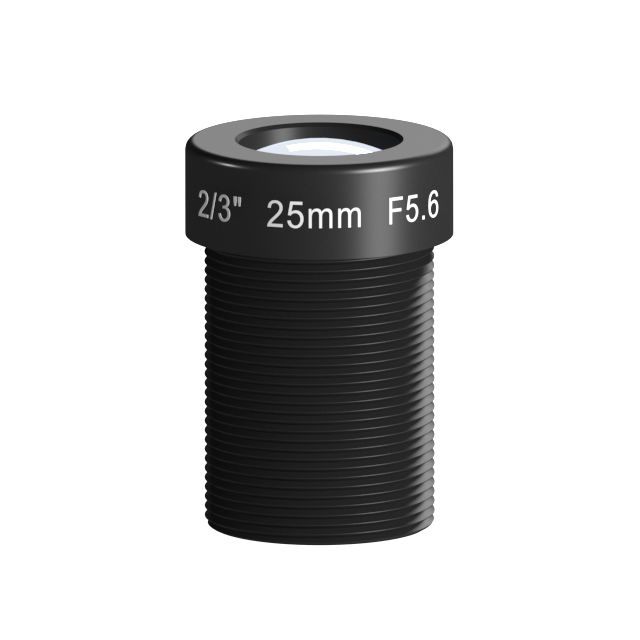

M12 series lenses are optimized for machine vision applications.
Widely used in measurement, positioning, defect detection and code reading.
PRODUCT FEATURES
▶ 4 aperture options F5.6,F7,F8,F11
▶ Maximum image size 2/3''
▶ 6MP high resolution, high picture clarity and consistency
▶ C-mount connect available with a adapter
▶ Small size and light weight, convenient for miniaturization and integration of equipment

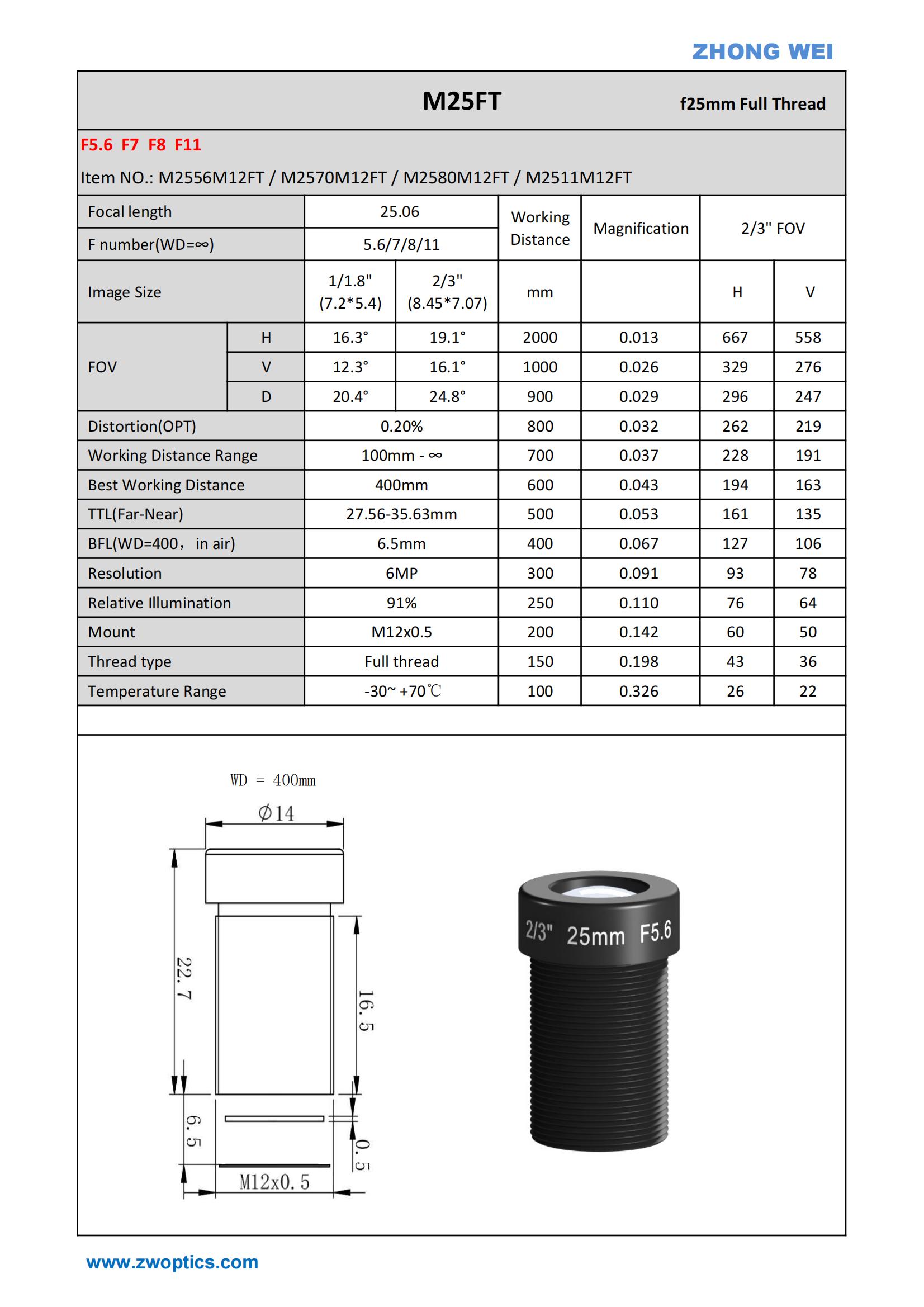

Product Specifications
| Artical Number | FL (mm) | Aperture( F/#) | Max Sensor Format | Distortion | WD(mm) | Mount | Thread | Resolution | IR Cut Filter |
|---|---|---|---|---|---|---|---|---|---|
| M2556M12FT | 25.06 | 5.6 | 2/3" | 0.2% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| M2570M12FT | 25.06 | 7 | 2/3" | 0.2% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| M2580M12FT | 25.06 | 8 | 2/3" | 0.2% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| M2511M12FT | 25.06 | 11 | 2/3" | 0.2% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| M2556M12FT-VIS | 25.06 | 5.6 | 2/3" | 0.2% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| M2570M12FT-VIS | 25.06 | 7 | 2/3" | 0.2% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| M2580M12FT-VIS | 25.06 | 8 | 2/3" | 0.2% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| M2511M12FT-VIS | 25.06 | 11 | 2/3" | 0.2% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
