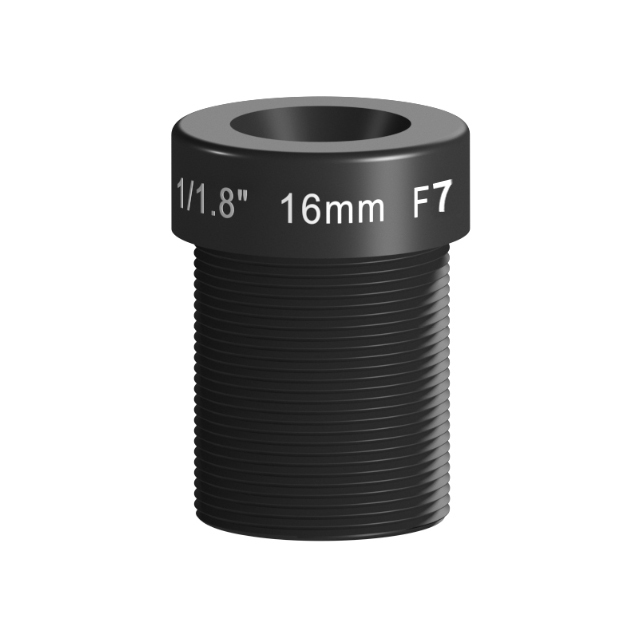

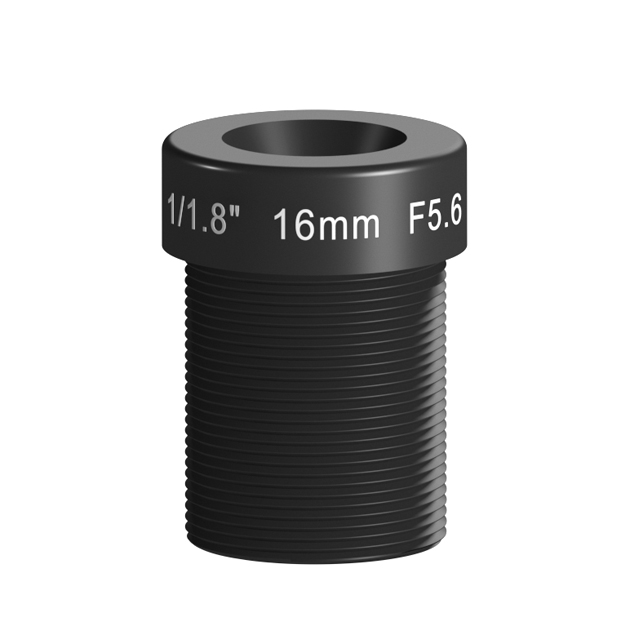

Product Display
M12 series lenses are optimized for machine vision applications.
Widely used in measurement, positioning, defect detection and code reading.
PRODUCT FEATURES
▶ 5 aperture options F4 F5.6,F7,F8,F11
▶ Maximum image size 1/1.8" (Φ9 mm)
▶ 6MP high resolution, high picture clarity and consistency
▶ -0.17% Low distortion
▶ Excellent anti-vibration performance and high and low temperature stability

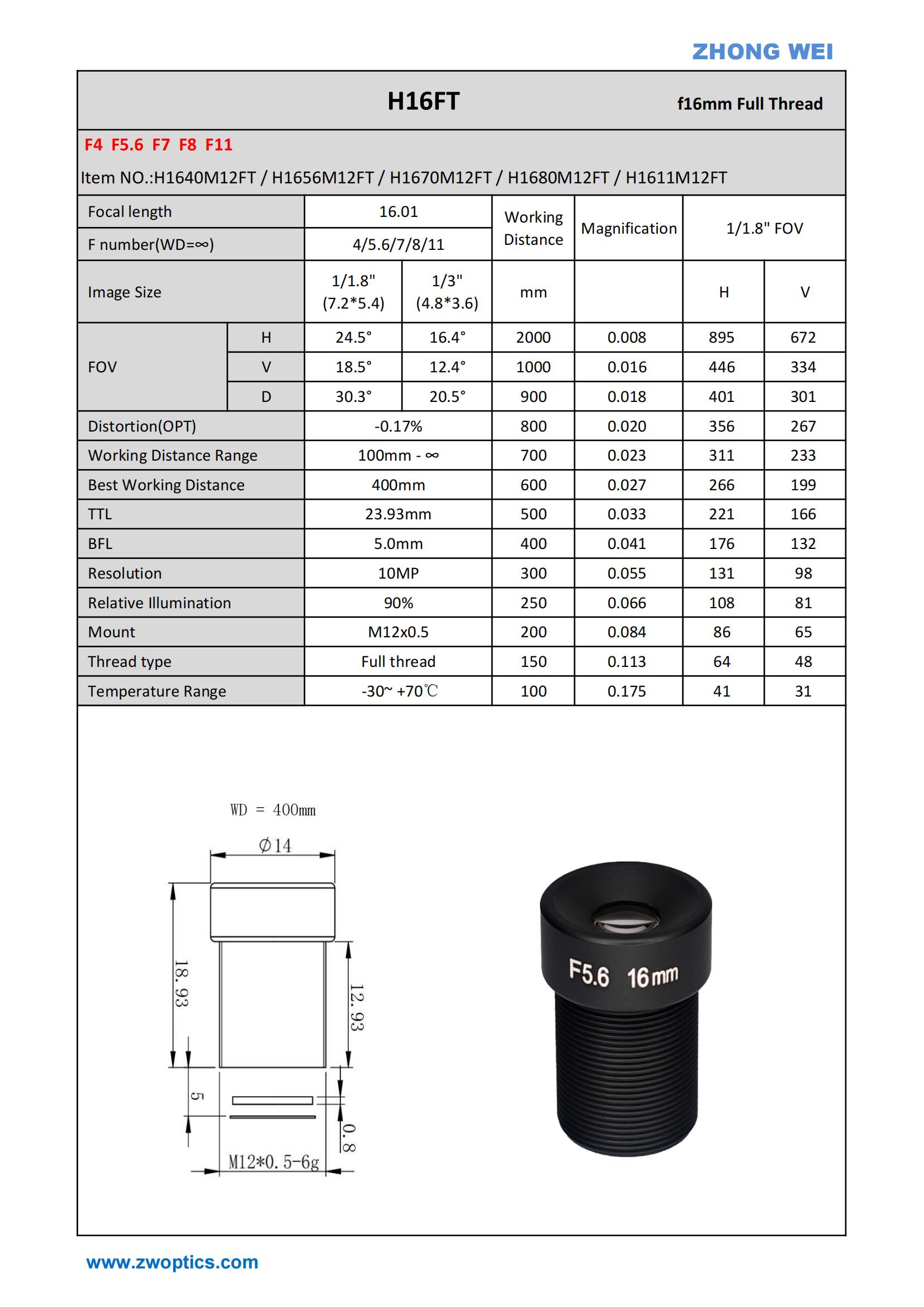

Product Specifications
| Artical Number | FL (mm) | Aperture( F/#) | Max Sensor Format | Distortion | WD(mm) | Mount | Thread | Resolution | IR Cut Filter |
|---|---|---|---|---|---|---|---|---|---|
| H1640M12FT | 16.01 | 4 | 1/1.8" | -0.17% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H1656M12FT | 16.01 | 5.6 | 1/1.8" | -0.17% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H1670M12FT | 16.01 | 7 | 1/1.8" | -0.17% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H1680M12FT | 16.01 | 8 | 1/1.8" | -0.17% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H1611M12FT | 16.01 | 11 | 1/1.8" | -0.17% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H1640M12FT-VIS | 16.01 | 4 | 1/1.8" | -0.17% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| H1656M12FT-VIS | 16.01 | 5.6 | 1/1.8" | -0.17% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| H1670M12FT-VIS | 16.01 | 7 | 1/1.8" | -0.17% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| H1680M12FT-VIS | 16.01 | 8 | 1/1.8" | -0.17% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| H1611M12FT-VIS | 16.01 | 11 | 1/1.8" | -0.17% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
