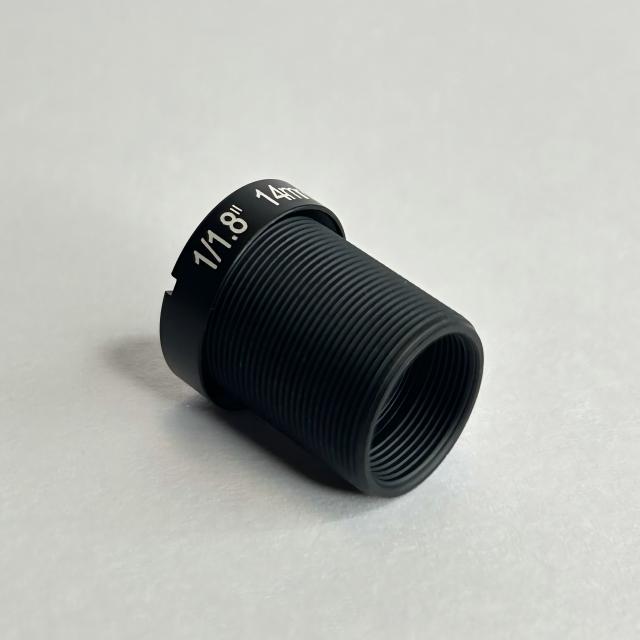

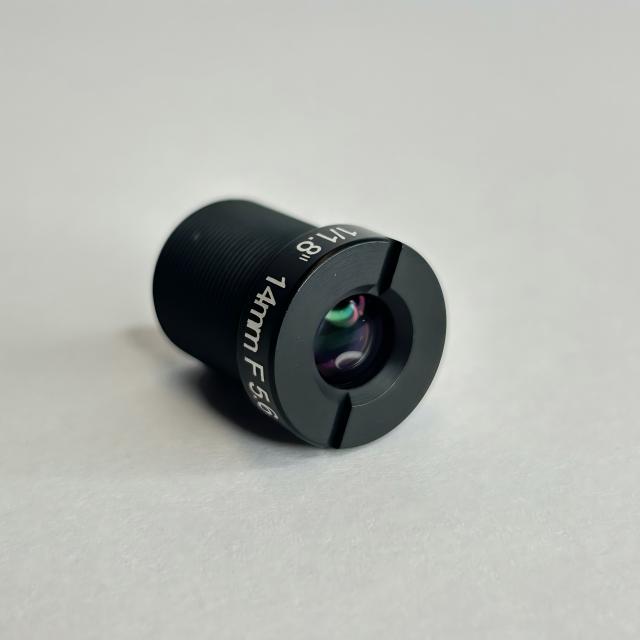

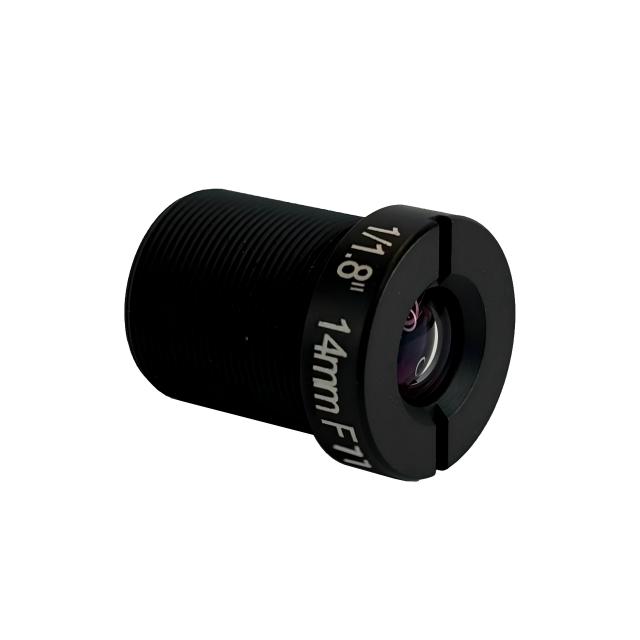

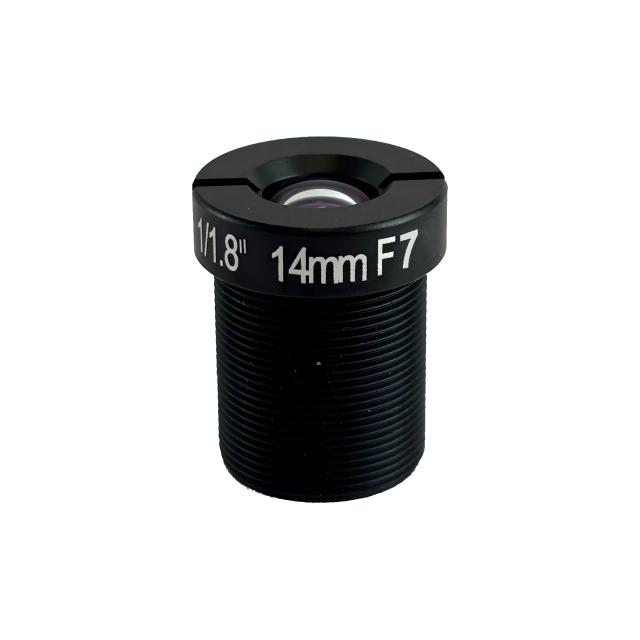

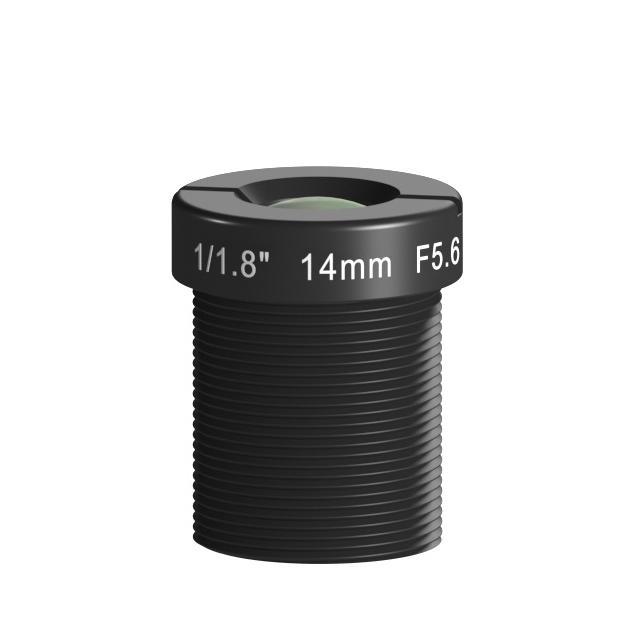

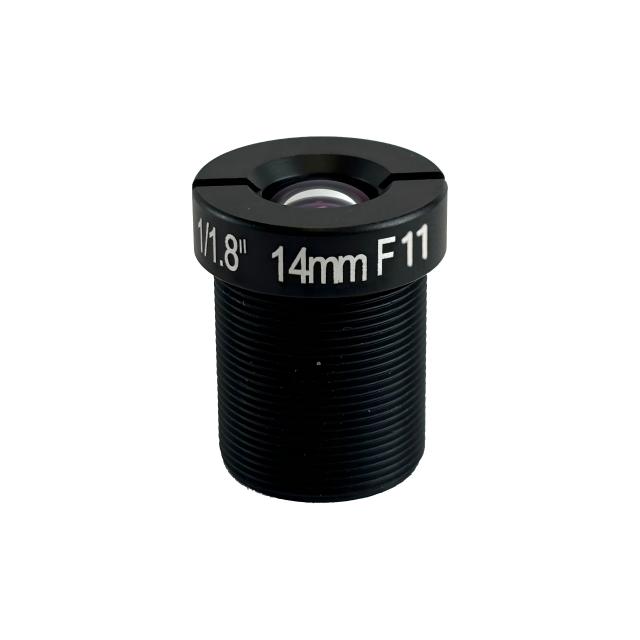

Product Display
M12 series lenses are optimized for machine vision applications.
Widely used in measurement, positioning, defect detection and code reading.
PRODUCT FEATURES
▶ 4 aperture options F5.6,F7,F8,F11
▶ -0.03% ultra low distortion, high resolution
▶ 6MP high resolution, high image performance
▶ Excellent anti-vibration performance and high and low temperature stability
▶ Achromatic design, better imaging with color camera

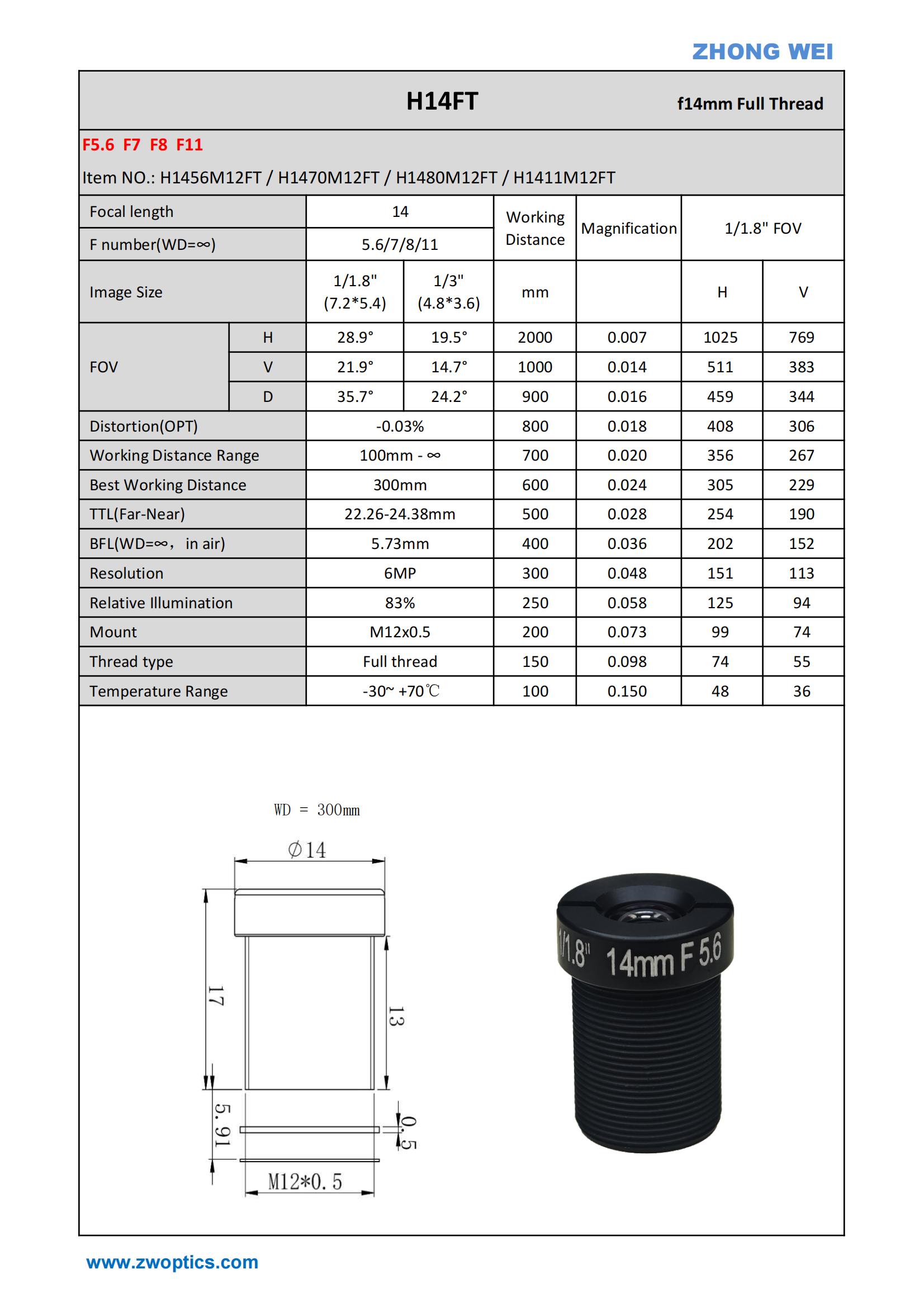

Product Specifications
| Artical Number | FL (mm) | Aperture( F/#) | Max Sensor Format | Distortion | WD(mm) | Mount | Thread | Resolution | IR Cut Filter |
|---|---|---|---|---|---|---|---|---|---|
| H1456M12FT | 14 | 5.6 | 1/1.8" | -0.03% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H1470M12FT | 14 | 7 | 1/1.8" | -0.03% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H1480M12FT | 14 | 8 | 1/1.8" | -0.03% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H1411M12FT | 14 | 11 | 1/1.8" | -0.03% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H1456M12FT-VIS | 14 | 5.6 | 1/1.8" | -0.03% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| H1470M12FT-VIS | 14 | 7 | 1/1.8" | -0.03% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| H1480M12FT-VIS | 14 | 8 | 1/1.8" | -0.03% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| H1411M12FT-VIS | 14 | 11 | 1/1.8" | -0.03% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
