Product Display
M12 series lenses are optimized for machine vision applications.
Widely used in measurement, positioning, defect detection and code reading.
PRODUCT FEATURES
▶ 5 aperture options F4, F5.6,F7,F8,F11
▶ 6MP high resolution, high uniformity of picture clarity
▶ -1.54% Low distortion, excellent relative illumination
▶ Maintains excellent optical properties at different object distances
▶ Supports ultra-short working distance
Product Specifications

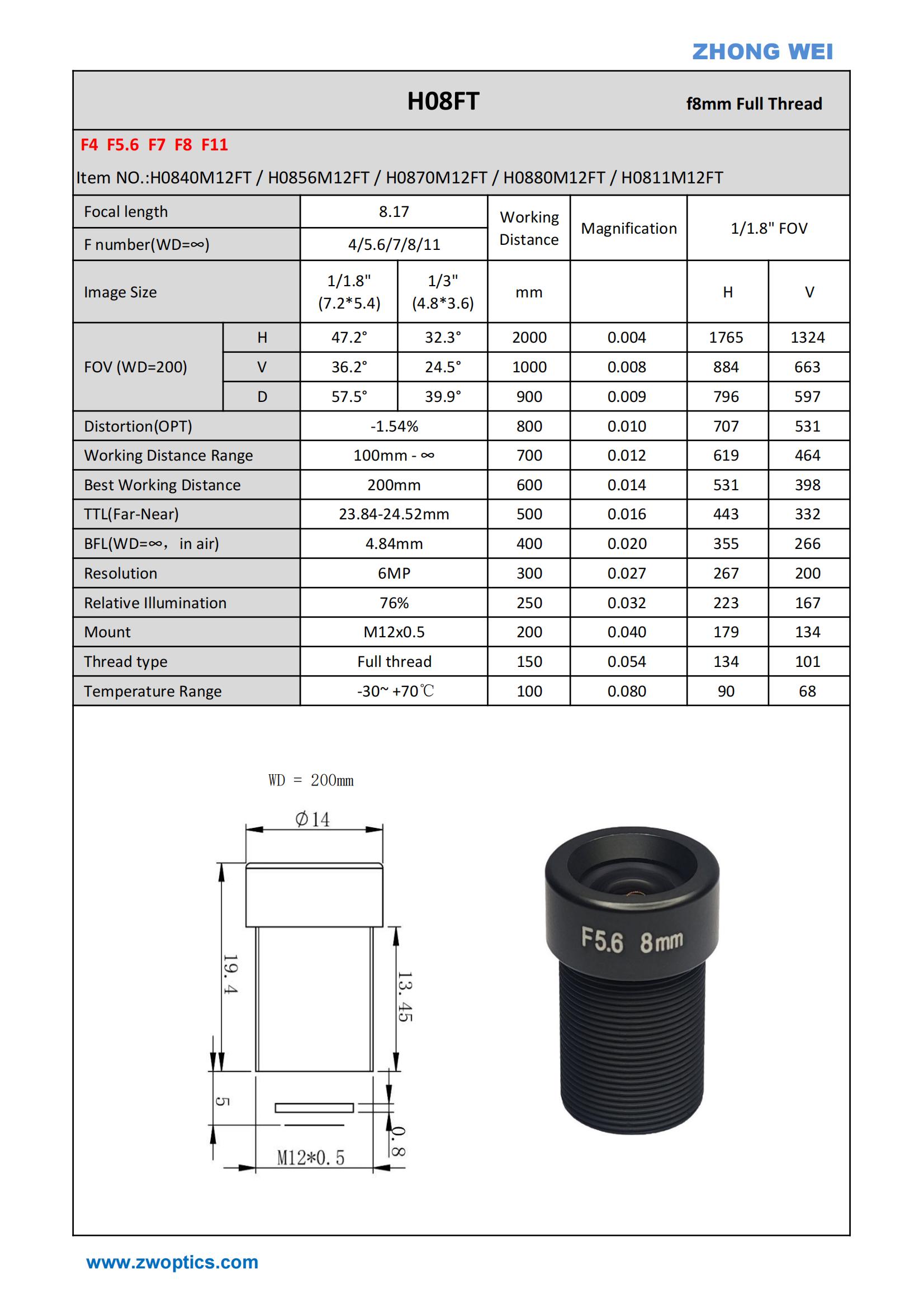

| Artical Number | FL (mm) | Aperture( F/#) | Max Sensor Format | Distortion | WD(mm) | Mount | Thread | Resolution | IR Cut Filter |
|---|---|---|---|---|---|---|---|---|---|

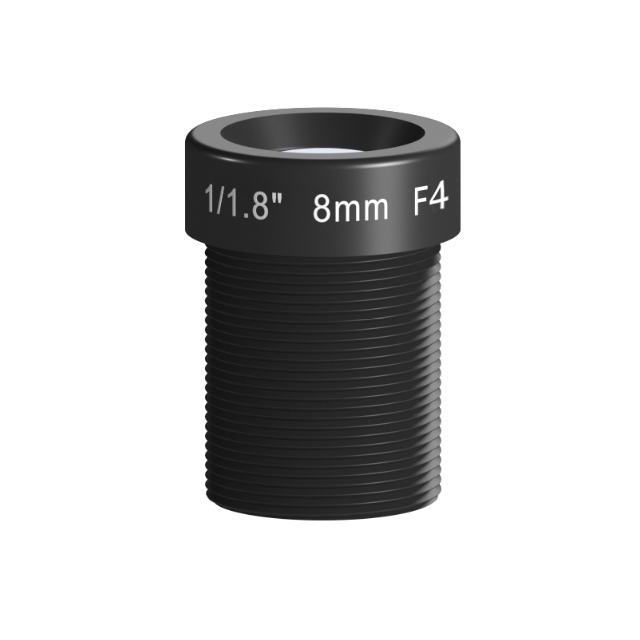

| H0840M12FT | 8.17 | 4 | 1/1.8" | -1.54% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H0856M12FT | 8.17 | 5.6 | 1/1.8" | -1.54% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H0870M12FT | 8.17 | 7 | 1/1.8" | -1.54% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |

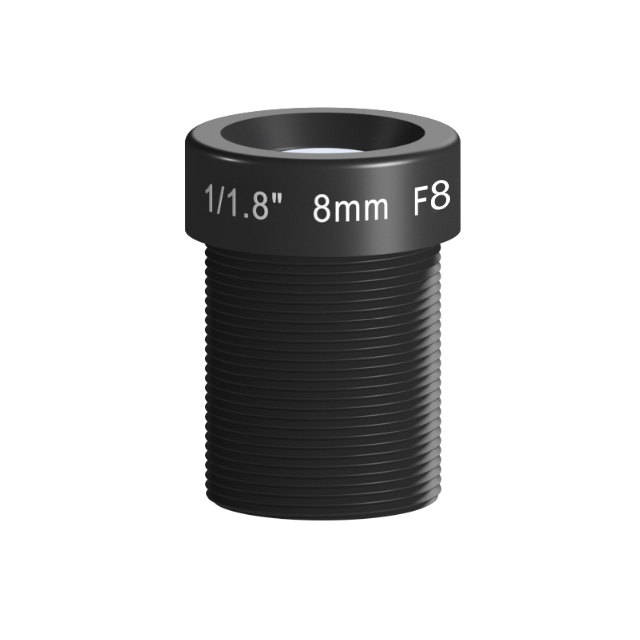

| H0880M12FT | 8.17 | 8 | 1/1.8" | -1.54% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H0811M12FT | 8.17 | 11 | 1/1.8" | -1.54% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H0840M12FT-VIS | 8.17 | 4 | 1/1.8" | -1.54% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| H0856M12FT-VIS | 8.17 | 5.6 | 1/1.8" | -1.54% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| H0870M12FT-VIS | 8.17 | 7 | 1/1.8" | -1.54% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| H0880M12FT-VIS | 8.17 | 8 | 1/1.8" | -1.54% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| H0811M12FT-VIS | 8.17 | 11 | 1/1.8" | -1.54% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
