Product Display

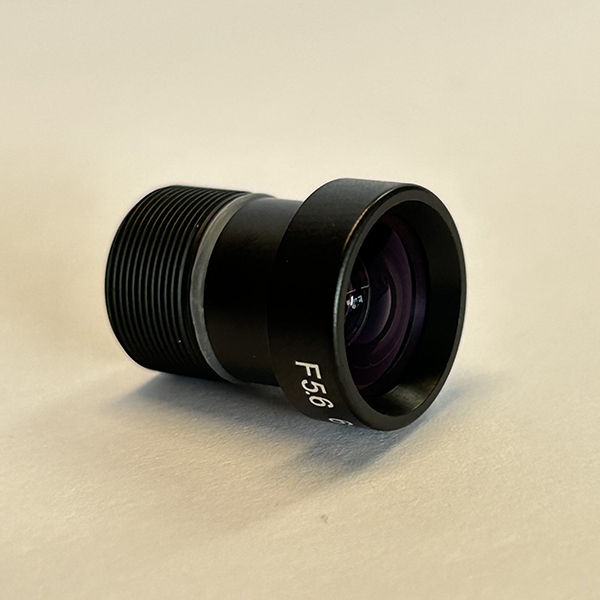

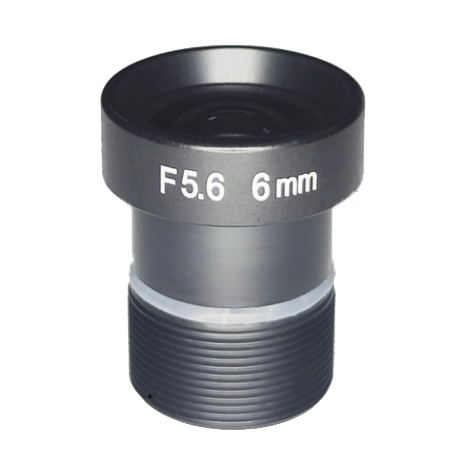

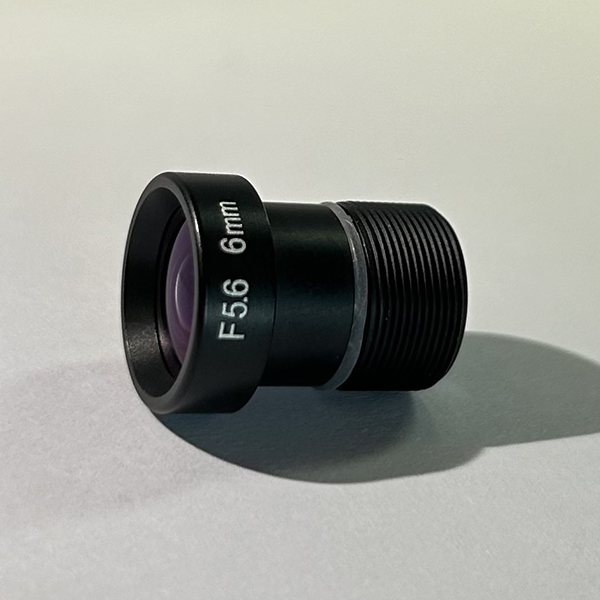

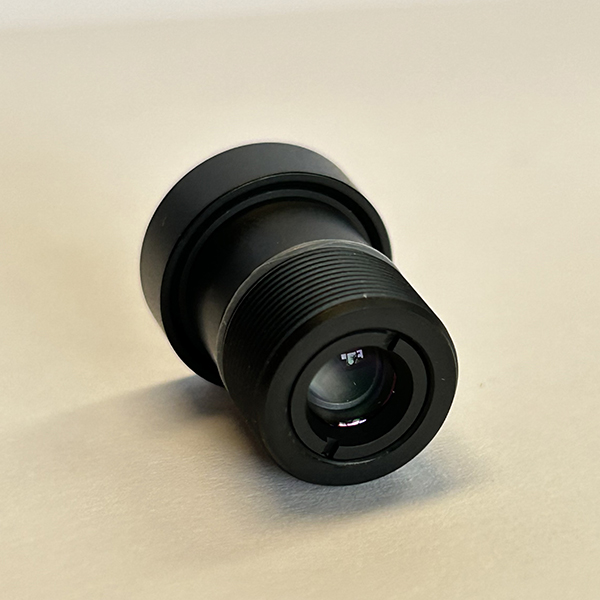

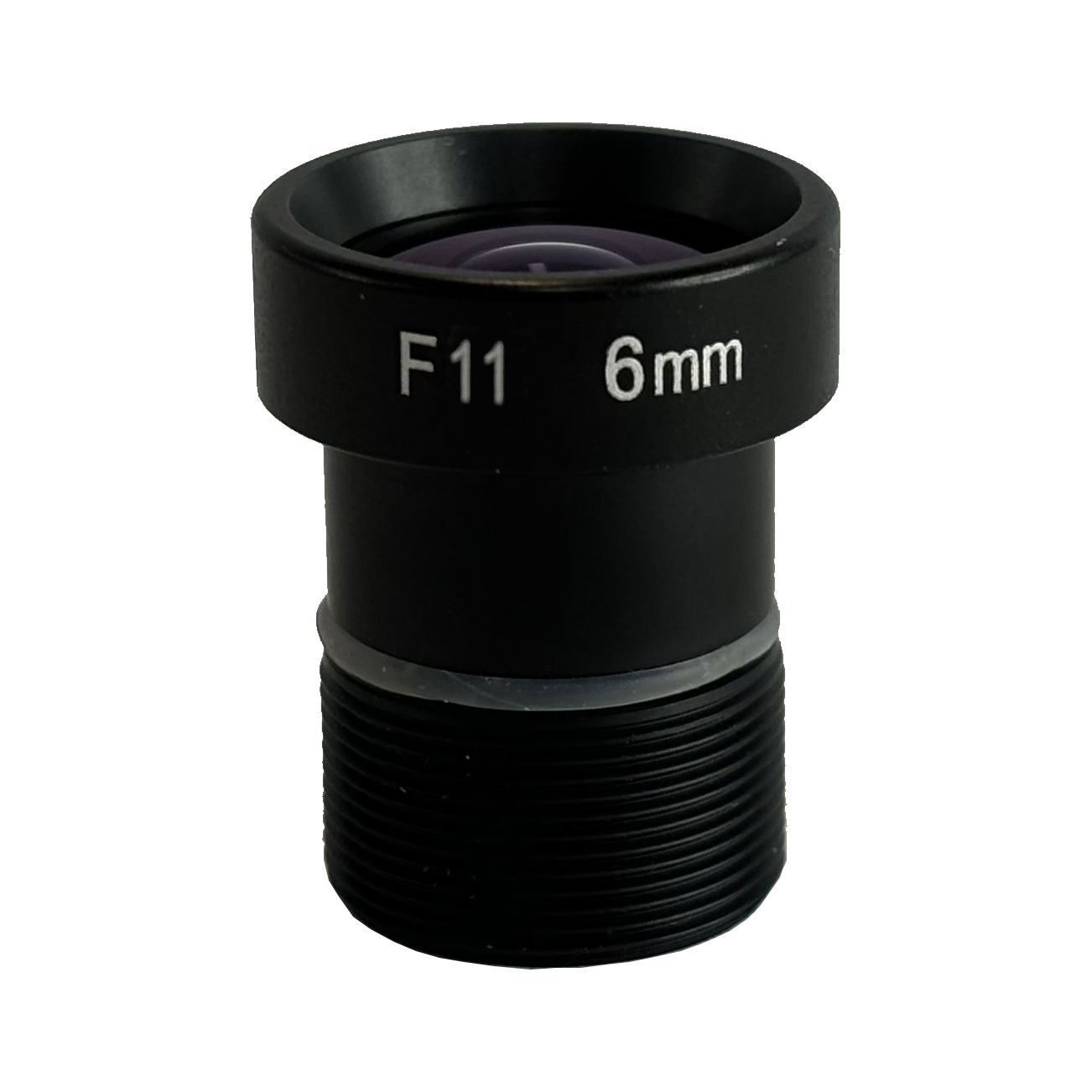

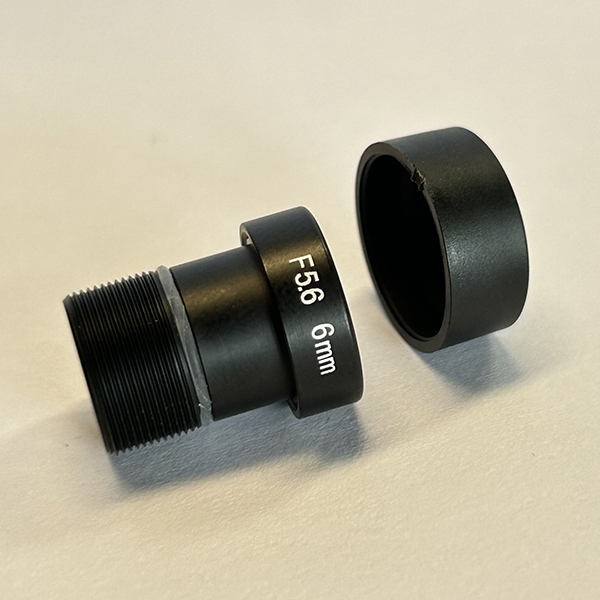

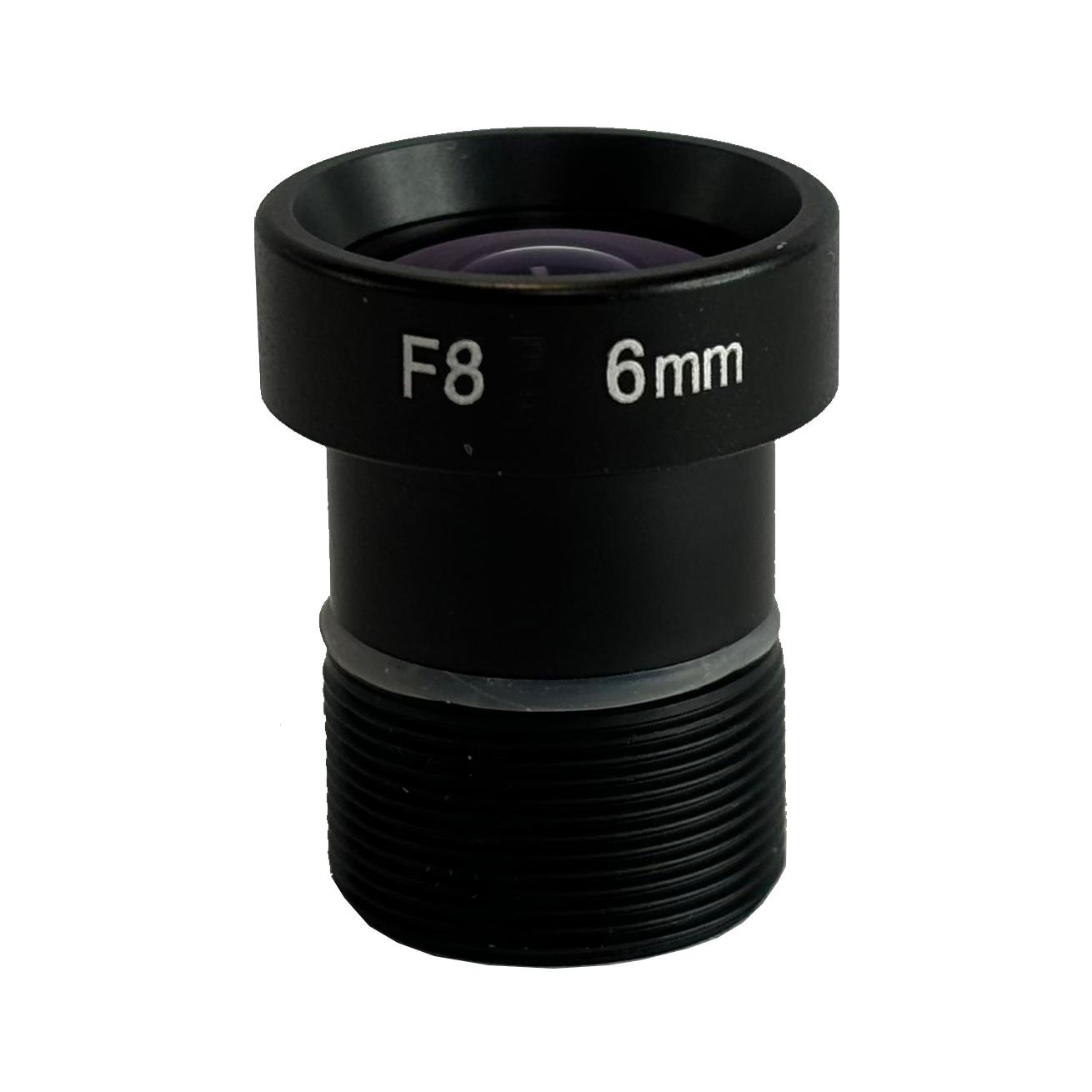

M12 series lenses are optimized for machine vision applications.
Widely used in measurement, positioning, defect detection and code reading.
PRODUCT FEATURES
▶ 5 aperture options F4, F5.6,F7,F8,F11
▶ 6MP high resolution, high picture clarity and consistency
▶ -1% Low distortion, excellent relative illumination
▶ Compact size, convenient for miniaturization and integration of equipment

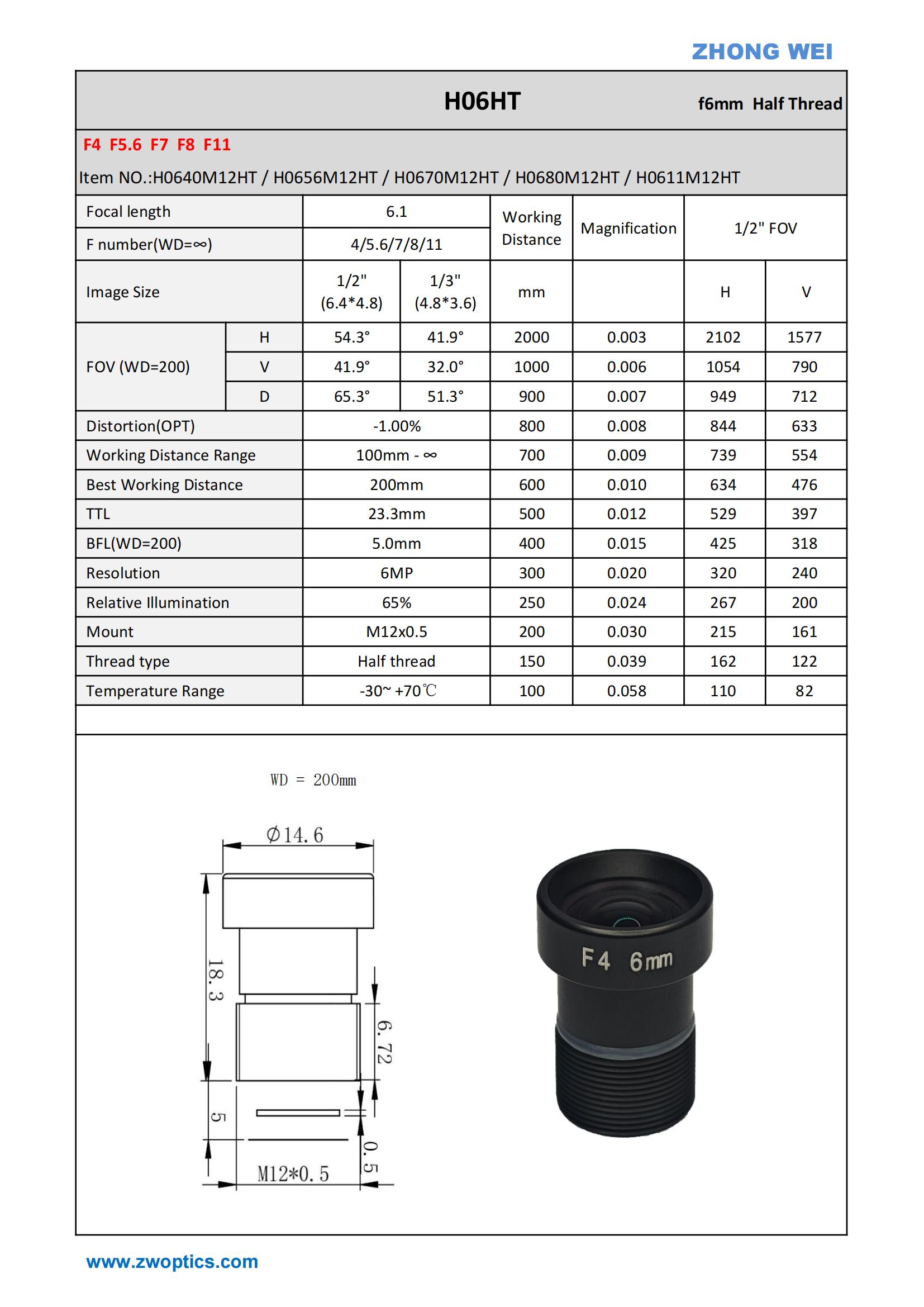

Product Specifications
| Artical Number | FL (mm) | Aperture( F/#) | Max Sensor Format | Distortion | WD(mm) | Mount | Thread | Resolution | IR Cut Filter |
|---|---|---|---|---|---|---|---|---|---|
| H0640M12HT | 6.1 | 4 | 1/2" | -1% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | NO |
| H0656M12HT | 6.1 | 5.6 | 1/2" | -1% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | NO |
| H0670M12HT | 6.1 | 7 | 1/2" | -1% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | NO |
| H0680M12HT | 6.1 | 8 | 1/2" | -1% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | NO |
| H0611M12HT | 6.1 | 11 | 1/2" | -1% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | NO |
| H0640M12HT-VIS | 6.1 | 4 | 1/2" | -1% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | YES |
| H0656M12HT-VIS | 6.1 | 5.6 | 1/2" | -1% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | YES |
| H0670M12HT-VIS | 6.1 | 7 | 1/2" | -1% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | YES |
| H0680M12HT-VIS | 6.1 | 8 | 1/2" | -1% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | YES |
| H0611M12HT-VIS | 6.1 | 11 | 1/2" | -1% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | YES |
