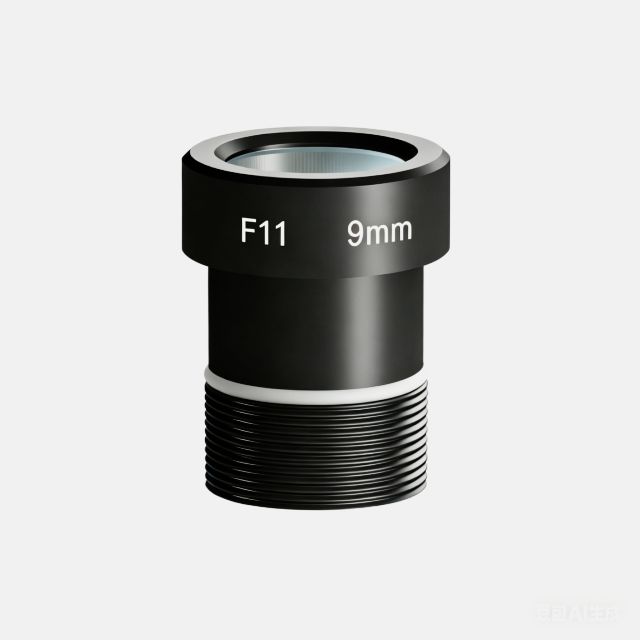

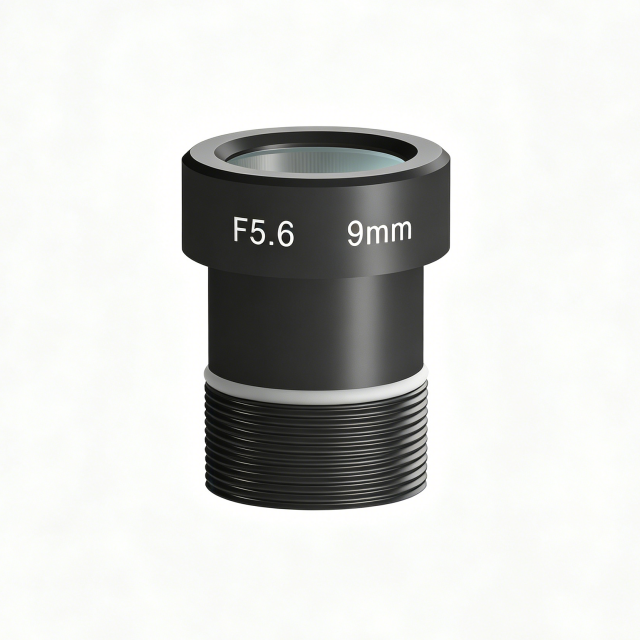

Product Display
M12 series lenses are optimized for machine vision applications.
Widely used in measurement, positioning, defect detection and code reading.
PRODUCT FEATURES
▶ 4 aperture options F5.6 F7 F8 F11
▶ Maximum image size 1/1.8"
▶ 6MP high resolution, high picture clarity and consistency
▶ C-mount connect available with a adapter
▶ Small size and light weight, convenient for miniaturization and integration of equipment

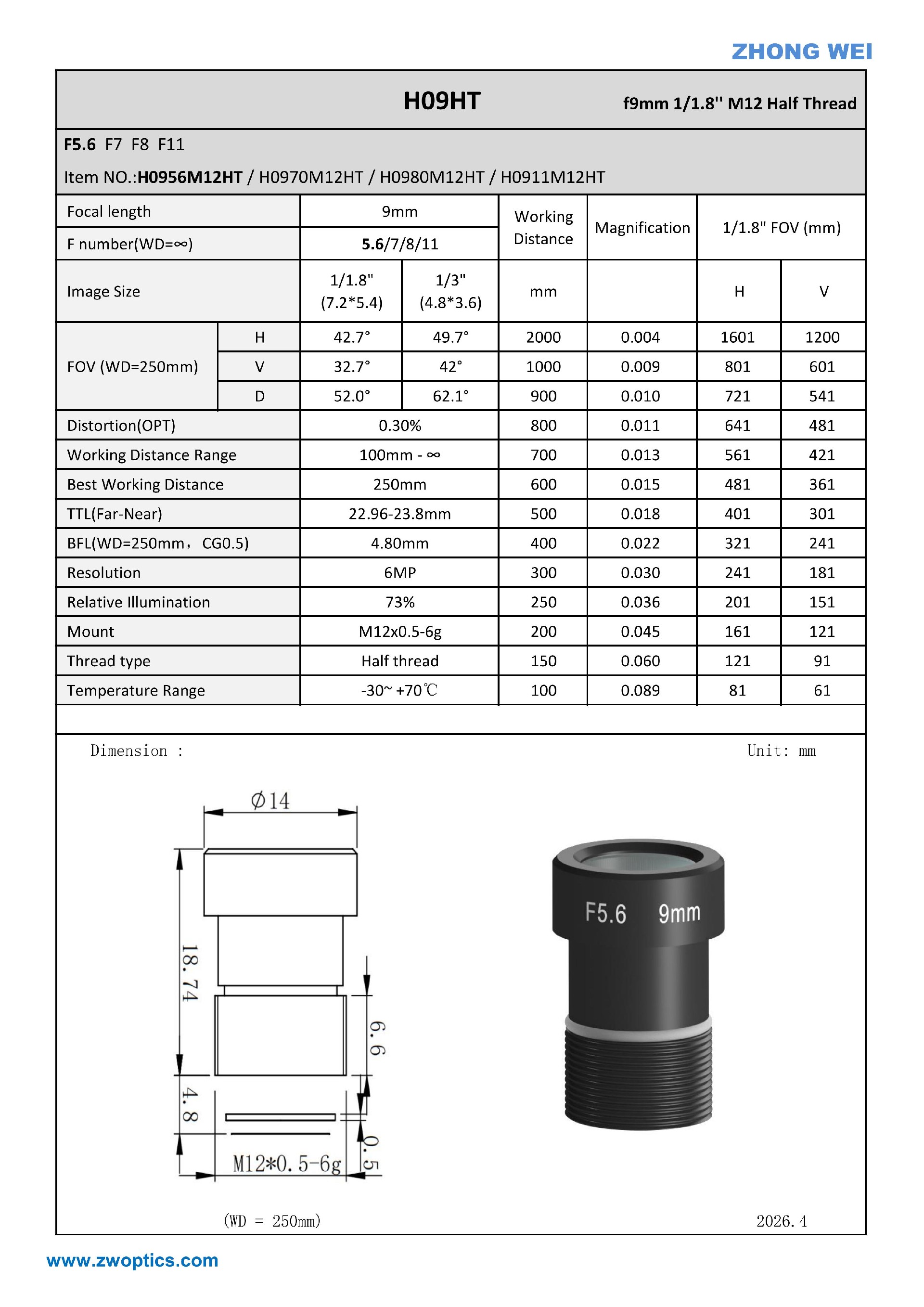

Product Specifications
| Artical Number | FL (mm) | Aperture( F/#) | Max Sensor Format | Distortion | WD(mm) | Mount | Thread | Resolution | IR Cut Filter |
|---|---|---|---|---|---|---|---|---|---|
| H0956M12HT | 9 | 5.6 | 1/1.8" | 0.3% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | NO |
| H0970M12HT | 9 | 7 | 1/1.8" | 0.3% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | NO |
| H0980M12HT | 9 | 8 | 1/1.8" | 0.3% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | NO |
| H0911M12HT | 9 | 11 | 1/1.8" | 0.3% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | NO |
| H0956M12HT-VIS | 9 | 5.6 | 1/1.8" | 0.3% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | YES |
| H0970M12HT-VIS | 9 | 7 | 1/1.8" | 0.3% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | YES |
| H0980M12HT-VIS | 9 | 8 | 1/1.8" | 0.3% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | YES |
| H0911M12HT-VIS | 9 | 11 | 1/1.8" | 0.3% | 100 - ∞ | M12x0.5 | Half Thread | 6MP | YES |
