Product Display
M12 series lenses are optimized for machine vision applications.
Widely used in measurement, positioning, defect detection and code reading.
PRODUCT FEATURES
▶ 2 aperture options F3.8 F5.6
▶ Maximum image size 2/3''
▶ 6MP high resolution, high picture clarity and consistency
▶ C-mount connect available with a adapter
▶ Small size and light weight, convenient for miniaturization and integration of equipment

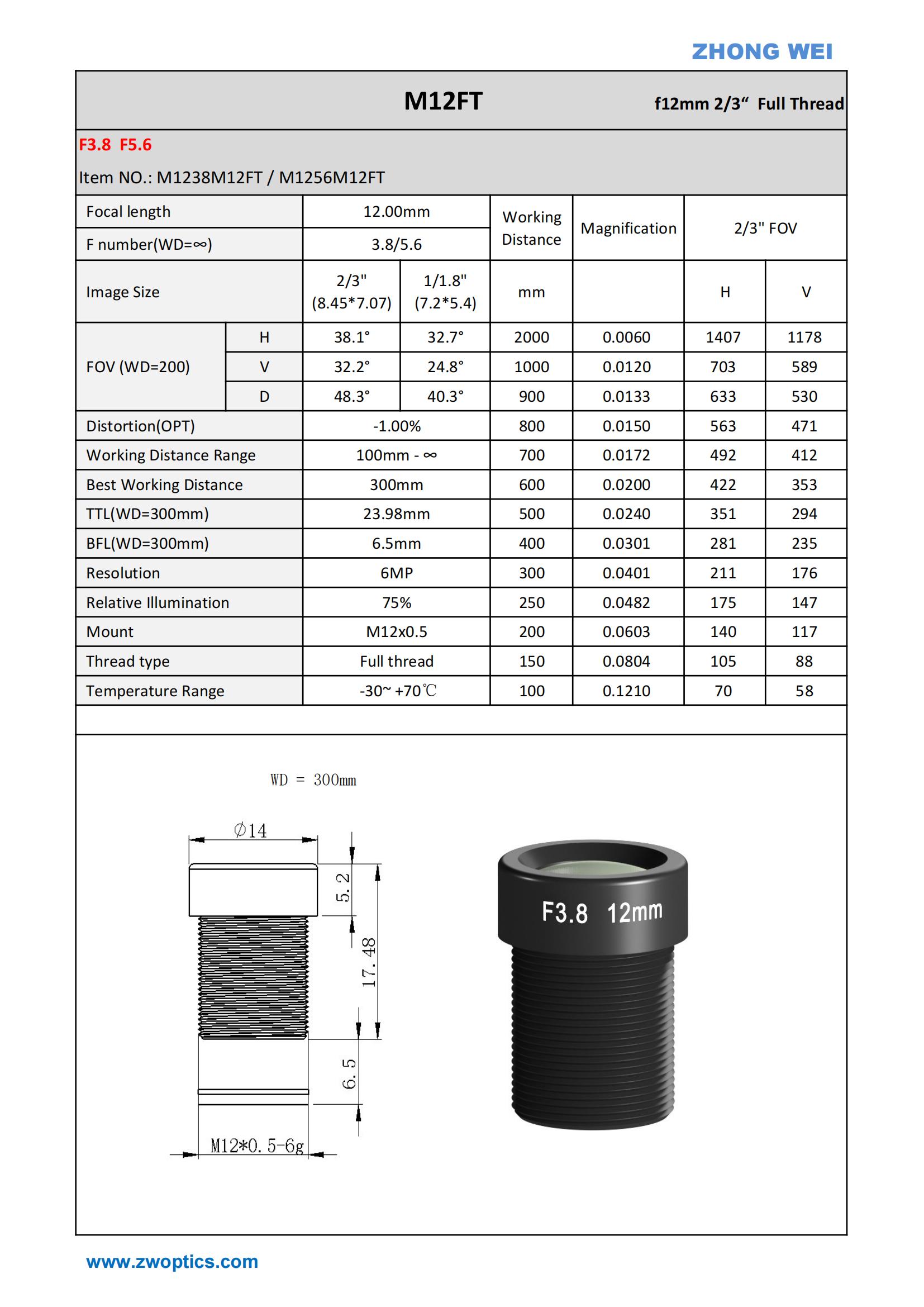

Product Specifications
| Artical Number | FL (mm) | Aperture( F/#) | Max Sensor Format | Distortion | WD(mm) | Mount | Thread | Resolution | IR Cut Filter |
|---|---|---|---|---|---|---|---|---|---|

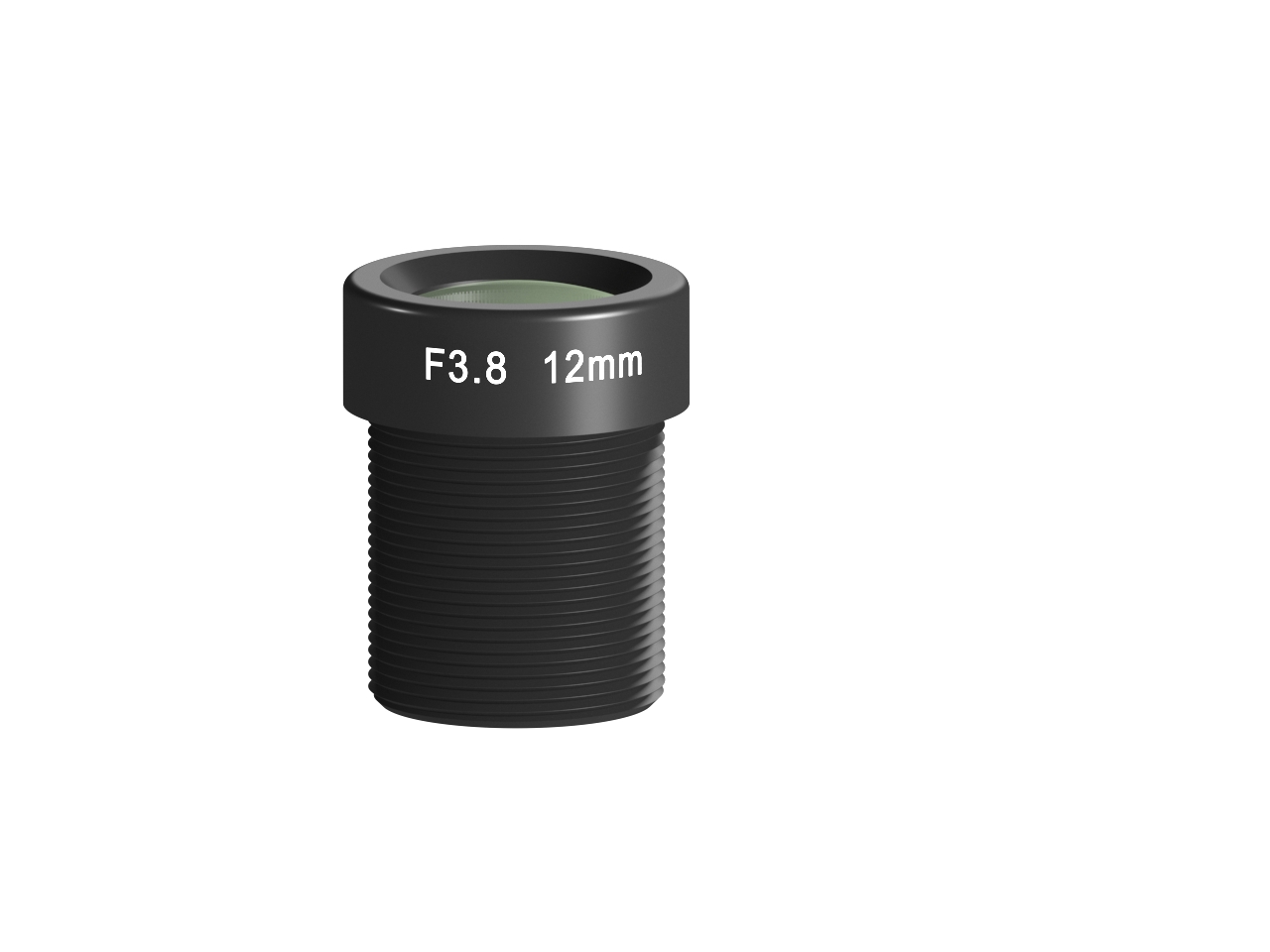

| M1238M12FT | 12 | 3.8 | 2/3" | -1% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |

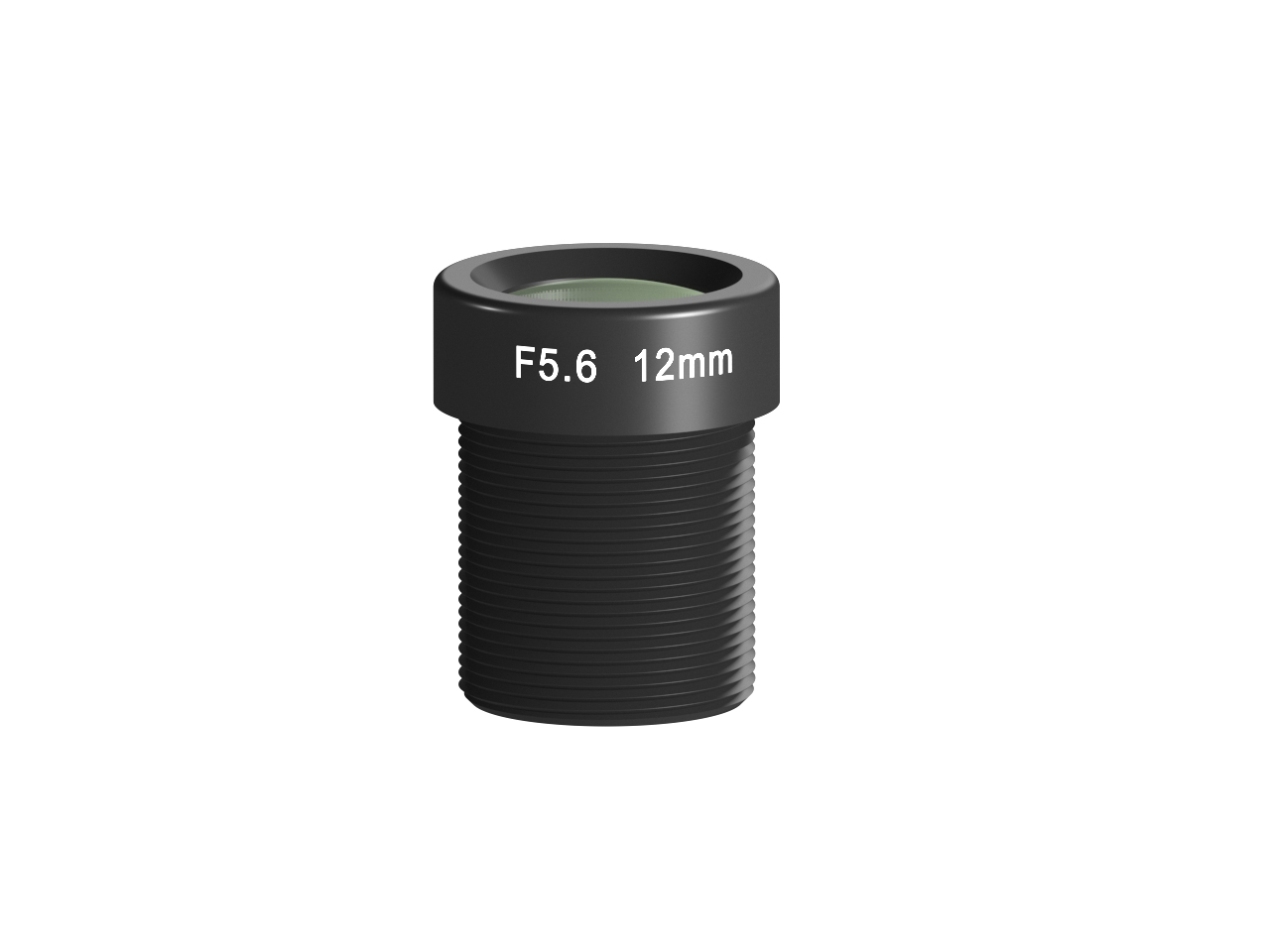

| M1256M12FT | 12 | 5.6 | 2/3" | -1% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| M1238M12FT-VIS | 12 | 3.8 | 2/3" | -1% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| M1256M12FT-VIS | 12 | 5.6 | 2/3" | -1% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
