Product Display
M12 series lenses are optimized for machine vision applications.
Widely used in measurement, positioning, defect detection and code reading.
PRODUCT FEATURES
▶ 4 aperture options F5.6,F7,F8,F11
▶ 6MP high resolution, high picture clarity and consistency
▶ -1% Low distortion, excellent relative illumination
▶ Compact size, convenient for miniaturization and integration of equipment

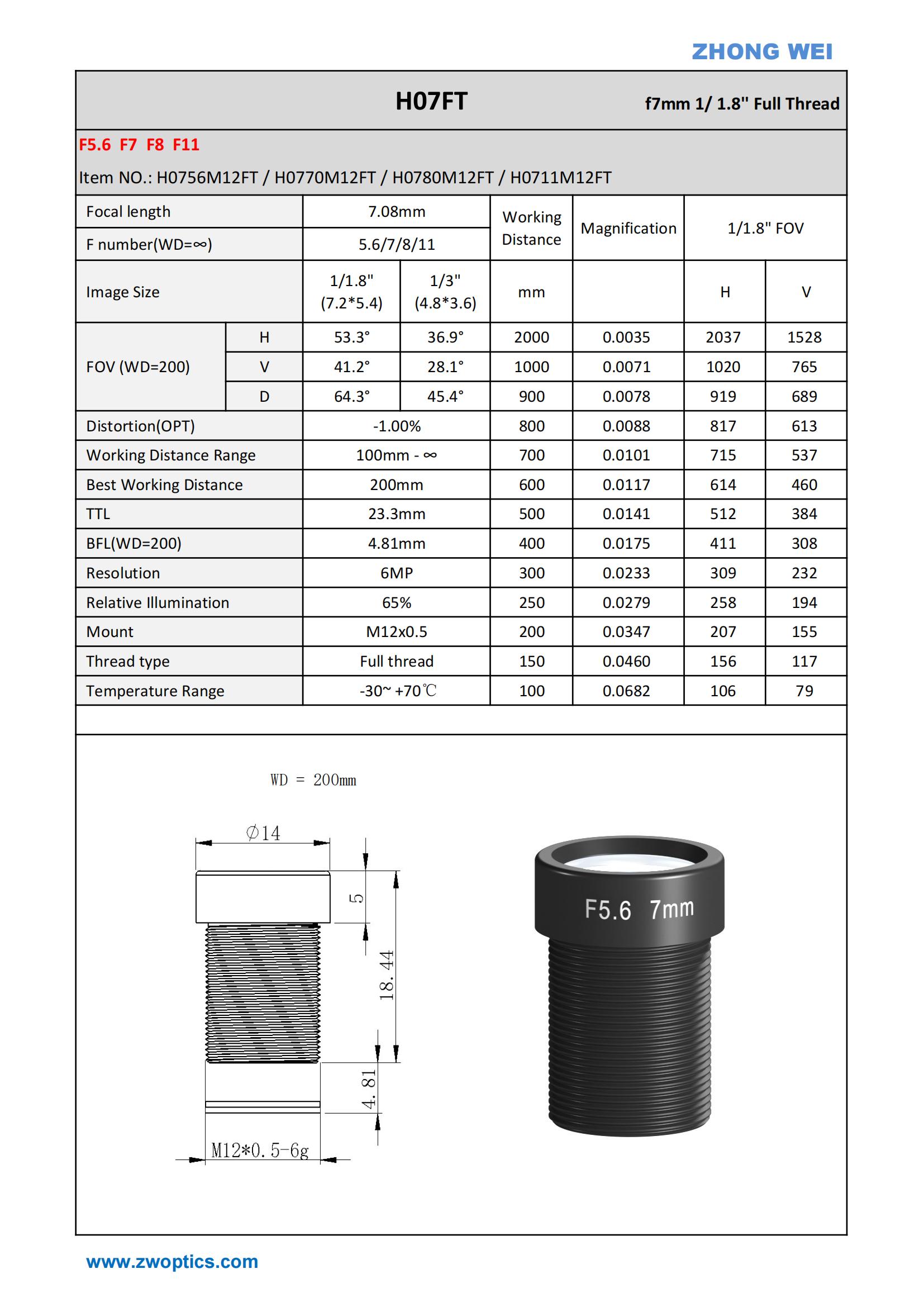

Product Specifications
| Artical Number | FL (mm) | Aperture( F/#) | Max Sensor Format | Distortion | WD(mm) | Mount | Thread | Resolution | IR Cut Filter |
|---|---|---|---|---|---|---|---|---|---|
| H0756M12FT | 7.08 | 5.6 | 1/1.8" | -1% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H0770M12FT | 7.08 | 7 | 1/1.8" | -1% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H0780M12FT | 7.08 | 8 | 1/1.8" | -1% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H0711M12FT | 7.08 | 11 | 1/1.8" | -1% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | NO |
| H0756M12FT-VIS | 7.08 | 5.6 | 1/1.8" | -1% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| H0770M12FT-VIS | 7.08 | 7 | 1/1.8" | -1% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| H0780M12FT-VIS | 7.08 | 8 | 1/1.8" | -1% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
| H0711M12FT-VIS | 7.08 | 11 | 1/1.8" | -1% | 100 - ∞ | M12x0.5 | Full Thread | 6MP | YES |
