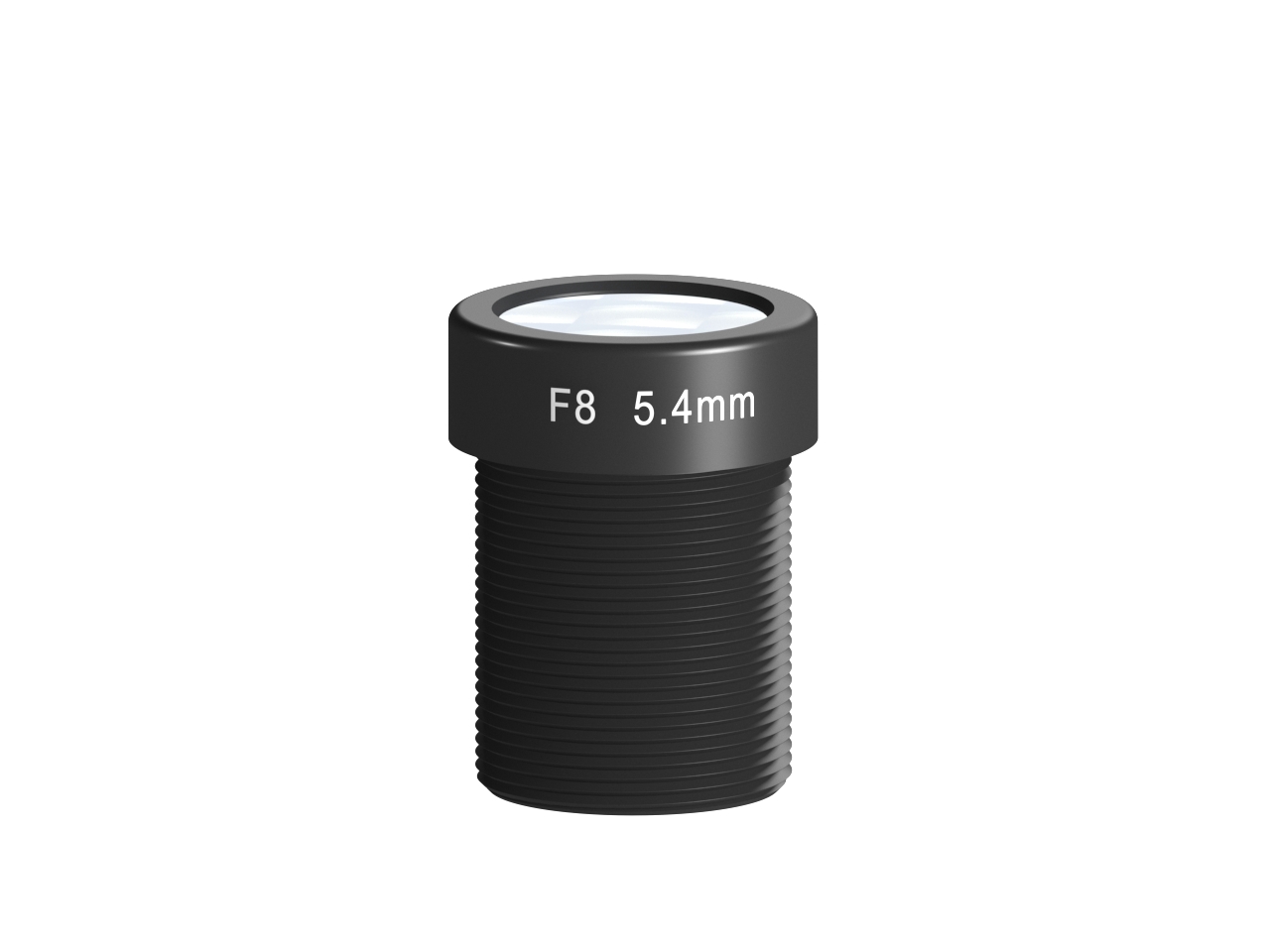

Product Display
M12 series lenses are optimized for machine vision applications.
Widely used in measurement, positioning, defect detection and code reading.
PRODUCT FEATURES
▶ 5 aperture options F4.5 F5.4,F7,F8,F11
▶ -0.7% Low distortion, excellent relative illumination
▶ Compact size, convenient for miniaturization and integration of equipment
▶ Customizable filter: IRCUT/Bandpass/Longpass

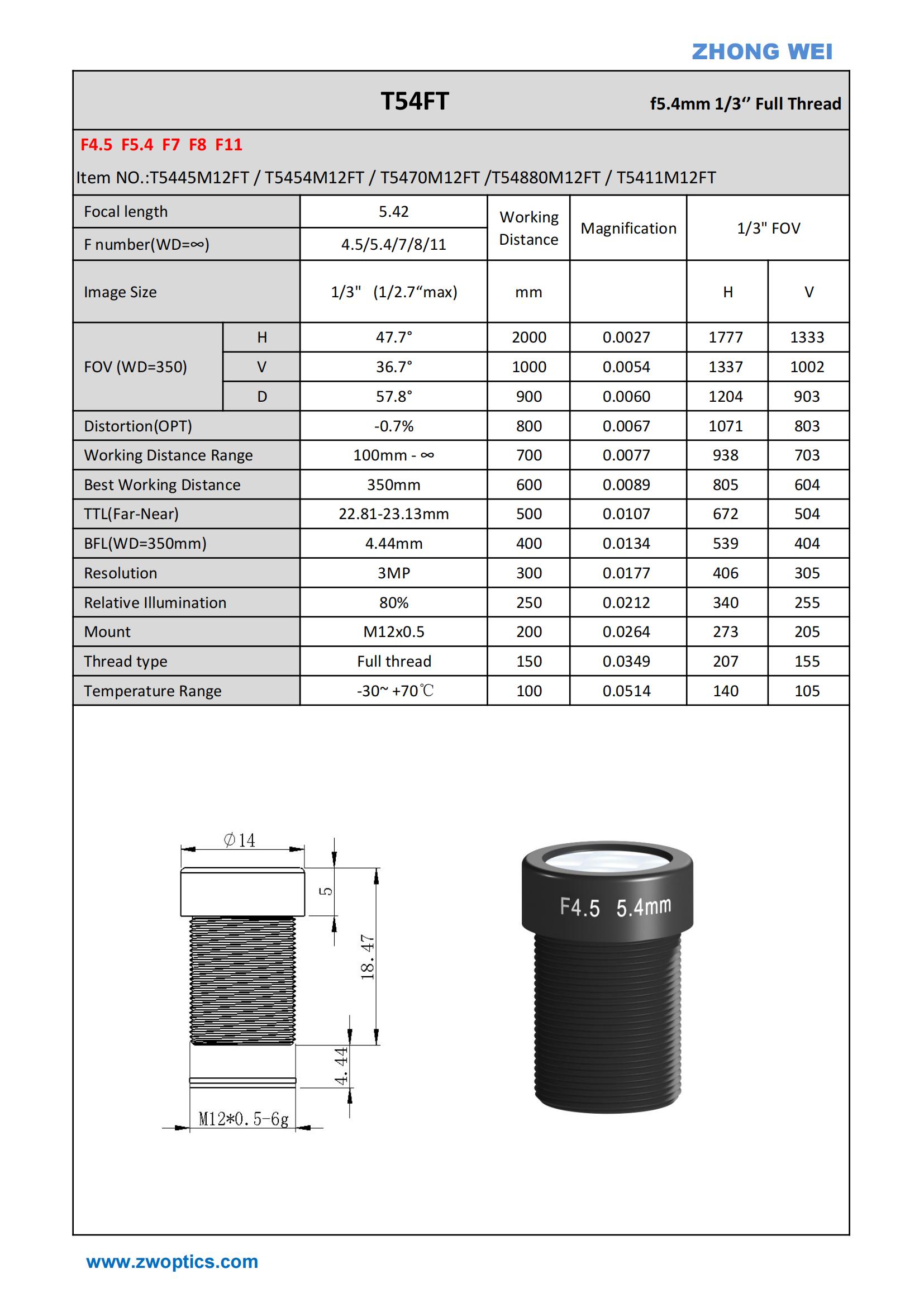

Product Specifications
| Artical Number | FL (mm) | Aperture( F/#) | Max Sensor Format | Distortion | WD(mm) | Mount | Thread | Resolution | IR Cut Filter |
|---|---|---|---|---|---|---|---|---|---|
| T5445M12FT | 5.42 | 4.5 | 1/2.7" | -0.7% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | NO |
| T5454M12FT | 5.42 | 5.4 | 1/2.7" | -0.7% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | NO |
| T5470M12FT | 5.42 | 7 | 1/2.7" | -0.7% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | NO |
| T5480M12FT | 5.42 | 8 | 1/2.7" | -0.7% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | NO |
| T5411M12FT | 5.42 | 11 | 1/2.7" | -0.7% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | NO |
| T5445M12FT-VIS | 5.42 | 4.5 | 1/2.7" | -0.7% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | YES |
| T5454M12FT-VIS | 5.42 | 5.4 | 1/2.7" | -0.7% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | YES |
| T5470M12FT-VIS | 5.42 | 7 | 1/2.7" | -0.7% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | YES |
| T5480M12FT-VIS | 5.42 | 8 | 1/2.7" | -0.7% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | YES |
| T5411M12FT-VIS | 5.42 | 11 | 1/2.7" | -0.7% | 100 - ∞ | M12x0.5 | Full Thread | 3MP | YES |
